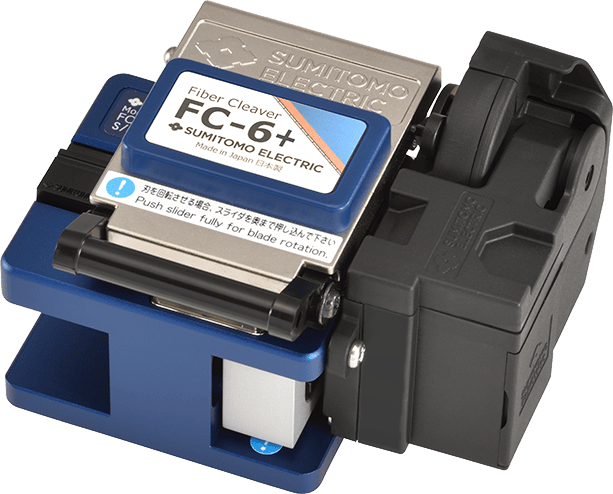

Sumitomo FC-6R Fiber Cleaver | High-Precision Auto-Rotating Blade Cleaver
The Sumitomo FC-6+ series is a high-precision benchtop fiber cleaver designed for single fibers and up to 12-fiber ribbons. Engineered with an auto-rotating blade and an automatic blade return system, this cleaver ensures seamless, efficient, and high-quality cleaving with every use — minimizing downtime and maximizing productivity.
- One-Action Cleaving: Effortlessly cleave fibers with a single, smooth motion for faster, simpler operation.
- Blade Auto Return: The automatic blade return ensures continuous, seamless performance, enhancing work efficiency.
- Auto-Rotating Blade: Patented rotating blade mechanism delivers consistent, repeatable quality cleaves without the need for manual adjustments.
- High-Precision Cleaving: Designed with a fine, high-quality blade to ensure superior cleaving results every time.
- Extended Blade Life: Expert craftsmanship supports long-lasting performance — delivering consistent quality over 60,000 fibers.
This reliable, long-life cleaver is ideal for technicians looking to improve workflow efficiency while maintaining precision and durability in fiber cleaving.
Basic Cleave Performance
- Fiber Type: 125μm silica glass fiber; Single to 12-fiber ribbon
- Cleave Length:
- 6-12mm (250μm fiber)
- 10-20mm (900μm fiber)
- 10mm (Ribbon fiber)
- Typical Cleave Angle: 0.5 degrees
- Blade Life: 60,000 fibers
Functions
- Automatic Blade Rotation: Switchable between automatic, fixed, and one-time rotation
- One-Action Cleave: Fast, efficient, single-motion operation
- Automatic Off-Cut Collection: Keeps the workspace clean and organized
Optional Parts
- AP-FC6M: Standard fiber adapter
- AP-FC6SA: Drop cable adapter
- CU-FC6+: Off-cut collector
- FCP-20BL(7R): Replacement blade
- Other accessories available
Other Specifications
- Dimensions & Weight: 100 x 81 x 63mm, 420g
- Operating Conditions: -10 to 50°C, 0 to 95% RH (non-condensing)
- Storage Conditions: -10 to 50°C, 0 to 95% RH (non-condensing)
