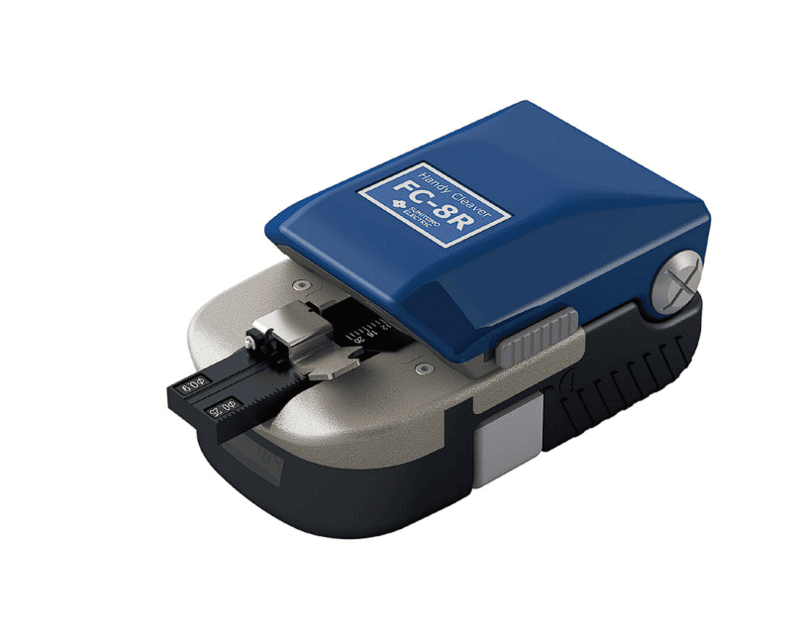

Sumitomo FC-8R Fiber Optic Handy Cleaver | Precision Cleaving Tool for Single & Ribbon Fibers
Designed for single fibers and up to 12-fiber ribbons, this handheld cleaver combines precision, durability, and user-friendly features — making it the perfect tool for both splicing and field connector use.
• Ergonomic Design: Comfortable, hand-fit design for easy handling and control.
• Made in Japan: High-quality craftsmanship, ensuring reliability and longevity.
• Automatic Blade Rotation: Patented mechanism delivers repeatable, high-quality cleaves without manual blade adjustments.
• Cleave Counter: Automatic cleave count tracking (FC-8R-FC models only).
• High-Precision, Durable Blade: Expert metalwork ensures consistent performance for over 60,000 fibers.
This cleaver is built to improve field efficiency while maintaining superior performance — a reliable companion for fiber optic technicians.
• Adjustable lid opening angle: Wide or narrow opening for convenience.
• Large capacity off-cut collector: Fewer cleanouts, more efficiency.
• Multi-purpose use: Ideal for splicing and field connectors.
• Wide fiber compatibility: Supports single and ribbon fibers.
Basic Cleave Performance
- 125μm silica glass fiber; Single to 12-fiber ribbons
- Cleave length: 6-12mm (250μm fiber), 10-20mm (900μm fiber), 10mm (Ribbon fiber)
- Typical cleave angle: 0.5 degrees
- Blade life: 60,000 fibers
Functions
- Automatic blade rotation: Available (switchable to fixed)
- Cleave counter: FC-8R-FC: Available, FC-8R-F: N/A
- Lid open angle: Switchable (Wide/Narrow)
Other Specifications
- Dimensions and weight: 58 x 98 x 47 mm, 260g
- Operating condition: -10 to 50°C, 0 to 95% RH (non-condensing)
- Storage condition: -10 to 50°C, 0 to 95% RH (non-condensing)
Optional Parts
- AP-FC7: Standard fiber adapter
- AP-FC8R: Fiber adapter with lid
- TR-FC8R: Off-cut collector
- FCP-20BL(7R): Replacement blade
- Other accessories available
